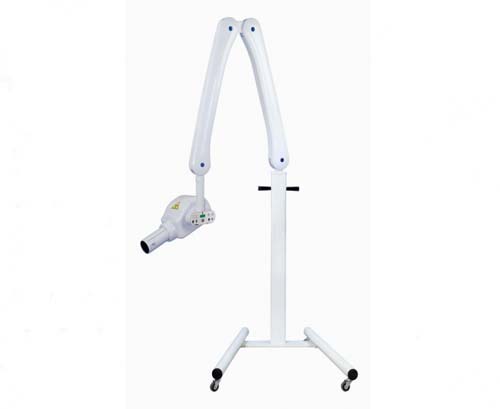

BEST-X-DC WIRELESS DIRECT CURRENT RADIOGRAPHIC

The radiographic unit BEST-X-DC is the fruit of the New Life Radiology long experience. It uses the most modern technique applied on dental radiology. It is light and compact, all functions integrated in the enbloc. Its lightness (Kg. 3,5) allows to operate the arm very easily. The enbloc with constant potential reduces significantly the dose compared to the traditional radiographic units. The harmful low energy radiations are almost totally eliminated, obtaining high definition images, both in traditional and digital operating modes and digital and phosphorous system protecting the patient’s health. Through the exclusive timer placed in the enbloc, the exposition parameter set up with pre-set and adjustable software by the end user is made easier. The machine is remote controlled, with the operator’s complete safety through the radio wave remote control. The exclusive thermoswitch system gives further safety by blocking Rx emission in the event of a timer breakdown. BEST-X-AC is also avalable in Mobile Version on wheels.

Features
Rated electrical power 0,800 kW
High frequency technology 100 KHz
Absorption 6 A
Toshiba Tube
DG-073B-DC
Focal spot 0,7 mm (IEC 336)
Ø of long cone at end of spacer 6 cm
Total filtration 2 mm Al eq.
Selectable anodic current 4-7 mA
Selectable voltage to x-ray tube 60-70 Kvp
Dispersed radiation < 0,25 mGh/h at 1 meter
Exposure time 0.020 – 1.000 mS R10 SCALE
Supply voltage 190-240 V (50Hz)
Intermittent operation 1/30 s exposure: 30 s reset
Distance F.F. 20 cm
Fuse F 6.3 AT Delayed
Logic control Deadman
Radiography key Digital
